Manufacturing & Assembly Applications
Precision Air Cylinder Solutions for Industrial Manufacturing and Automated Assembly Lines
Why Choose Our Air Cylinders for Manufacturing
Over 20 years of experience delivering reliable pneumatic solutions for industrial manufacturing processes
High Precision
Accurate positioning and repeatable performance for critical manufacturing processes
Reliable Operation
Consistent performance in demanding industrial environments with minimal maintenance
Cost Effective
Optimized solutions that reduce operational costs and improve production efficiency
Clean Operation
Gas-powered operation prevents contamination in sensitive manufacturing environments
Manufacturing Applications
Comprehensive air cylinder solutions for diverse manufacturing and assembly operations
Automated Assembly Lines
Component Positioning
Precise positioning of parts during assembly processes with repeatable accuracy
Pick and Place Operations
Efficient material handling and component placement in automated production lines
Clamping & Holding
Secure workpiece clamping during machining, welding, and assembly operations
Material Handling Systems
Conveyor Controls
Pneumatic actuators for conveyor belt control, stops, and diverters
Lifting Mechanisms
Vertical lifting and positioning of materials in production workflows
Sorting Systems
Automated sorting and routing of products based on specifications
Quality Control & Testing
Testing Equipment
Pneumatic actuators for automated testing and inspection equipment
Measurement Systems
Precise positioning for dimensional measurement and quality verification
Reject Mechanisms
Automated rejection of non-conforming products from production lines
Air Cylinder Product Categories
Specialized pneumatic cylinders designed for manufacturing and assembly applications
Standard Air Cylinders
Double-acting and single-acting cylinders for general manufacturing applications
- • Bore sizes: 32mm – 320mm
- • Stroke lengths: 25mm – 2000mm
- • Operating pressure: 1.5 – 10 bar
Compact Cylinders
Space-saving designs for tight installation spaces in assembly lines
- • Bore sizes: 12mm – 100mm
- • Short overall length
- • High force-to-size ratio
Rodless Cylinders
Long-stroke cylinders for material handling and positioning applications
- • Stroke lengths up to 6000mm
- • Magnetic or mechanical coupling
- • Space-efficient design
Rotary Actuators
Pneumatic rotary motion for valve control and positioning applications
- • Rotation angles: 90°, 180°, 270°
- • High torque output
- • Precise angular positioning

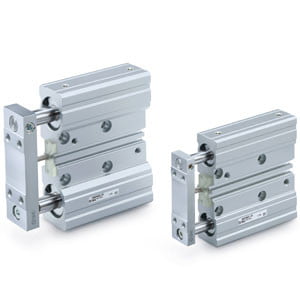

Guided Cylinders
Anti-rotation cylinders for applications requiring precise linear motion
- • Linear guide integration
- • High lateral load capacity
- • Smooth operation
Specialty Cylinders
Custom solutions for specific manufacturing requirements and environments
- • Stainless steel construction
- • Food-grade materials
- • Explosion-proof designs
Technical Specifications
Comprehensive specifications for manufacturing and assembly applications
Performance Parameters
1.5 – 10 bar
-20°C to +80°C
50 – 2000 mm/s
±0.1 mm
10 million cycles
< 1 ml/min
Construction Features
Anodized Aluminum Body
Corrosion-resistant extruded aluminum construction
Chrome-Plated Steel Rod
Hard chrome plating for wear resistance and smooth operation
High-Quality Seals
NBR/FKM seals for long service life and reliability
Adjustable Cushioning
Pneumatic cushioning for smooth end-of-stroke deceleration
Multiple Mounting Options
Various mounting configurations for flexible installation
Quality & Compliance
Meeting international standards for manufacturing excellence
ISO 15552
International standard for pneumatic cylinders
CE Marking
European conformity certification
RoHS Compliant
Restriction of hazardous substances
VDMA 24562
German engineering standards
Get Manufacturing Solutions Today
Contact our engineering team for custom air cylinder solutions for your manufacturing applications
Contact Information
+86 13588957686
Building 13, Intelligent Industrial Zone No.2777 Ningkang East Road Yueqing City, Wenzhou City Zhejiang Province, China
Our Expertise
- • 20+ years in pneumatic cylinder manufacturing
- • Serving 30+ countries worldwide
- • Custom engineering solutions
- • Comprehensive technical support
