Pneumatic Cylinder Products
Discover our comprehensive range of high-quality air cylinders and pneumatic actuators.
With over 20 years of experience, we provide reliable solutions for industrial automation needs.
Standard Air Cylinders
Double-acting and single-acting cylinders for general industrial applications.
Available in various bore sizes and stroke lengths.
- • Bore sizes: 12mm – 320mm
- • Working pressure: 0.1 – 1.0 MPa
- • Temperature range: -5°C to +80°C
Compact Cylinders
Space-saving design for applications with limited installation space.
Lightweight yet powerful performance.
- • Bore sizes: 12mm – 100mm
- • Short overall length
- • High force-to-size ratio
Rotary Actuators
Pneumatic rotary actuators for applications requiring rotational motion.
Precise angle control and high torque output.
- • Rotation angles: 90°, 180°, 270°
- • High torque capacity
- • Adjustable cushioning

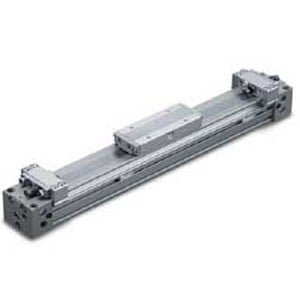

Rodless Cylinders
Magnetic and mechanical coupling rodless cylinders for long stroke applications.
Space-efficient design with excellent guiding properties.
- • Long stroke capability
- • Magnetic or mechanical coupling
- • Integrated guide system

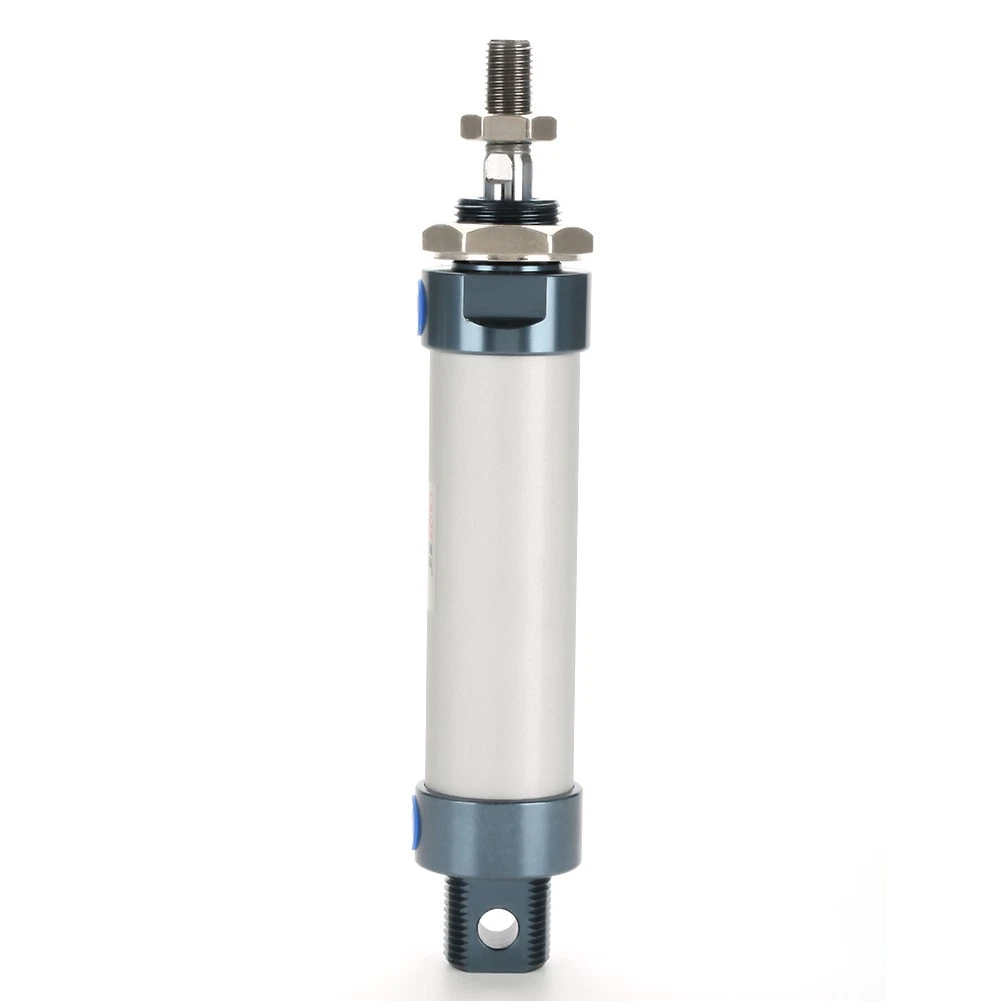

Miniature Cylinders
Ultra-compact cylinders for precision applications and tight spaces.
Perfect for electronics, medical devices, and laboratory equipment.
- • Bore sizes: 6mm – 25mm
- • Precision manufacturing
- • Low air consumption
Special Purpose Cylinders
Custom-designed cylinders for specific applications including stainless steel,
high-temperature, and corrosion-resistant variants.
- • Stainless steel construction
- • High temperature resistance
- • Custom specifications available
Technical Specifications
| Specification | Range | Standard |
|---|---|---|
| Working Pressure | 0.1 – 1.0 MPa | 0.6 MPa |
| Operating Temperature | -5°C to +80°C | +23°C |
| Bore Diameter | 6mm – 320mm | Varies by model |
| Stroke Length | 5mm – 2000mm | Custom available |
| Mounting Options | Multiple configurations | ISO standard |
Key Features
High-Quality Materials
Manufactured using premium aluminum alloy and stainless steel for durability and corrosion resistance.
Precision Engineering
Tight tolerances and smooth operation ensure reliable performance in demanding applications.
Easy Installation
Standard mounting configurations and comprehensive documentation for quick setup.
Long Service Life
Advanced sealing technology and quality components ensure extended operational life.
Applications
Industrial Automation
- • Assembly lines
- • Material handling
- • Packaging equipment
- • Conveyor systems
Manufacturing
- • CNC machines
- • Press operations
- • Clamping systems
- • Positioning devices
Automotive
- • Assembly fixtures
- • Welding equipment
- • Testing systems
- • Parts handling
Food & Beverage
- • Filling machines
- • Sorting equipment
- • Packaging systems
- • Quality control
Need Custom Solutions?
Our engineering team can design custom pneumatic cylinders to meet your specific requirements.
Contact us for technical consultation and quotations.
